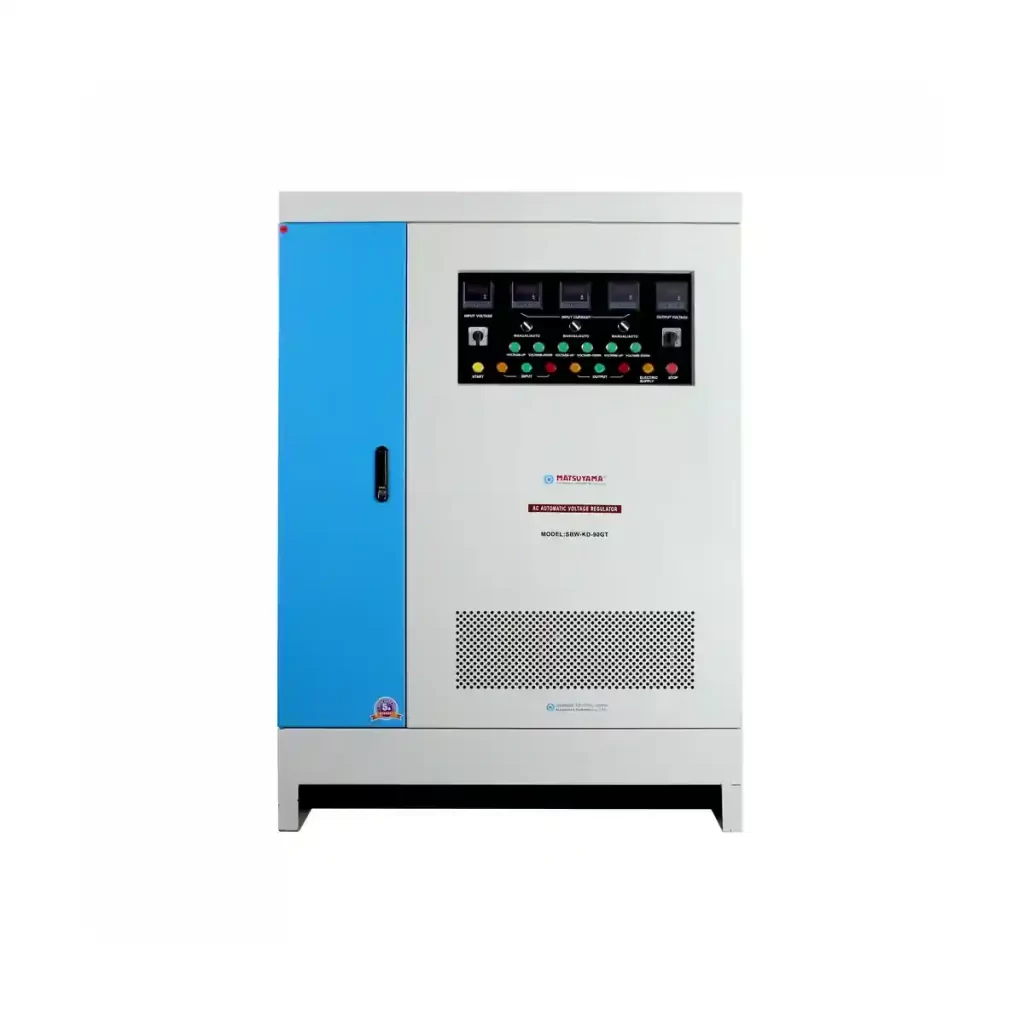

Stabilizer Matsuyama SBW - KD - 90 GT 90 KVA
Stabilizer Matsuyama SBW - KD - 90 GT 90 KVA

Spesifikasi Teknis

Phase:
3 Phase
Kapasitas:
90 KVA
Model:
SBW - KD - 90 GT
Input:
240 V - 415 V
Output:
380 V / 220 V
Output Deviance:
± 2 - 5% (Adjustable)
Frequency:
50 Hz
Rated Current:
135 A
Reading Meter:
Digital Volt Meter Input & Output serta Amper Meter
Protection Output:
Over Voltage ±238 V/ Phase, Automatic Cut Off
Respon Time:
≤ 1s (Against 10% input voltage deviation)
Effeciency:
Better than 98% (Input 180 V, Output 220 V / Phase)
Ambient Temperature:
'-5°C until +40°C
Ambient Humidity:
Less than 90% (Relative Humidity)
Temperature Rise:
Less than 70% (Input Voltage 180 V, Output Voltage 220 V / Phase)
Working System:
Automatic
Control System:
AC Servo Motor
Cooling System:
Cooled Fan
Di-Electric Strength:
1500 V/Min
Waveform Distorsion:
Non-Lack Fidelity Waveform
Installation:
Indoor
Panjang:
90 Cm
Lebar:
162 Cm
Tinggi:
115 Cm
Berat:
714 Kg
Share di FB
Twit Produk
Share di WA
Share di FB
Twit Produk
Share di WA

Matsuyama Stabilizer, Stabilizer dengan berbagai fitur terbaik. Mampu menstabilkan daya, menghubungkan antara kapasitas input output dan juga lainnya.

Fitur Utama

3 Phase
SBW - KD - 90 GT
90 KVA
240 V - 415 V
380 V / 220 V
Over Voltage ±238 V/ Phase, Automatic Cut Off

Spesifikasi Teknis

Phase:
3 Phase
Kapasitas:
90 KVA
Model:
SBW - KD - 90 GT
Input:
240 V - 415 V
Output:
380 V / 220 V
Output Deviance:
± 2 - 5% (Adjustable)
Frequency:
50 Hz
Rated Current:
135 A
Reading Meter:
Digital Volt Meter Input & Output serta Amper Meter
Protection Output:
Over Voltage ±238 V/ Phase, Automatic Cut Off
Respon Time:
≤ 1s (Against 10% input voltage deviation)
Effeciency:
Better than 98% (Input 180 V, Output 220 V / Phase)
Ambient Temperature:
'-5°C until +40°C
Ambient Humidity:
Less than 90% (Relative Humidity)
Temperature Rise:
Less than 70% (Input Voltage 180 V, Output Voltage 220 V / Phase)
Working System:
Automatic
Control System:
AC Servo Motor
Cooling System:
Cooled Fan
Di-Electric Strength:
1500 V/Min
Waveform Distorsion:
Non-Lack Fidelity Waveform
Installation:
Indoor
Panjang:
90 Cm
Lebar:
162 Cm
Tinggi:
115 Cm
Berat:
714 Kg
