Spesifikasi Teknis
Phase:
3 Phase
Kapasitas:
120 KVA
Model:
SBW - SKD - 120 GT
Input:
175 V - 415 V
Output:
380 V / 220 V
Output Deviance:
± 2 - 5% (Adjustable)
Frequency:
50 Hz
Rated Current:
180 A
Reading Meter:
Digital Volt Meter Input & Output serta Amper Meter
Protection Output:
Over Voltage ±238 V/ Phase, Automatic Cut Off
Respon Time:
≤ 1s (Against 10% input voltage deviation)
Effeciency:
Better than 98% (Input 180 V, Output 220 V / Phase)
Ambient Temperature:
'-5°C until +40°C
Ambient Humidity:
Less than 90% (Relative Humidity)
Temperature Rise:
Less than 70% (Input Voltage 180 V, Output Voltage 220 V / Phase)
Working System:
Automatic
Control System:
AC Servo Motor
Cooling System:
Cooled Fan
Di-Electric Strength:
1500 V/Min
Waveform Distorsion:
Non-Lack Fidelity Waveform
Installation:
Indoor
Panjang:
90 Cm
Lebar:
177 Cm
Tinggi:
115 Cm
Berat:
964 Kg
Share di FB
Twit Produk
Share di WA
Detail Produk

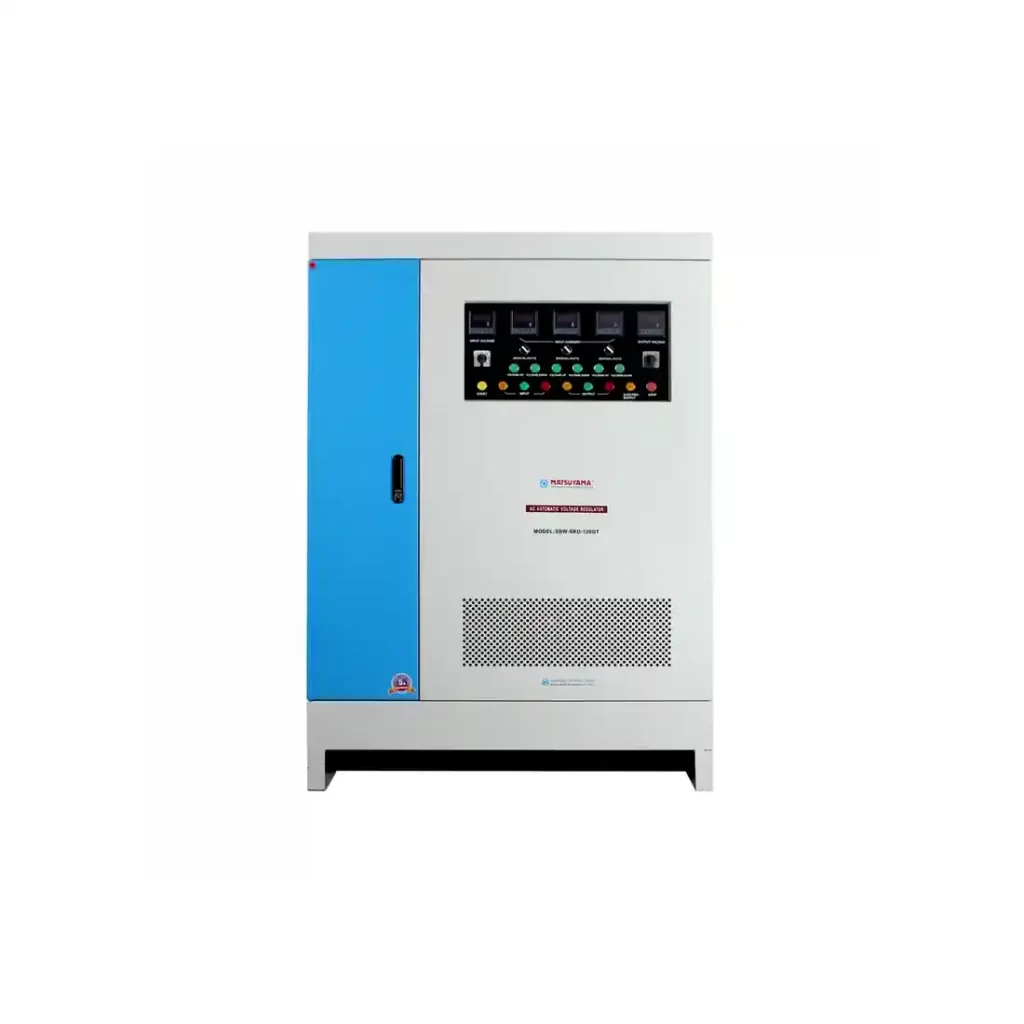

Matsuyama Stabilizer, Stabilizer dengan berbagai fitur terbaik. Mampu menstabilkan daya, menghubungkan antara kapasitas input output dan juga lainnya.
Fitur Utama
3 Phase
SBW - SKD - 120 GT
120 KVA
175 V - 415 V
380 V / 220 V
Over Voltage ±238 V/ Phase, Automatic Cut Off
